New Graphtec Garment Pattern Cutter Features Enhanced Speed

MM LIVE- Adobe Workshop

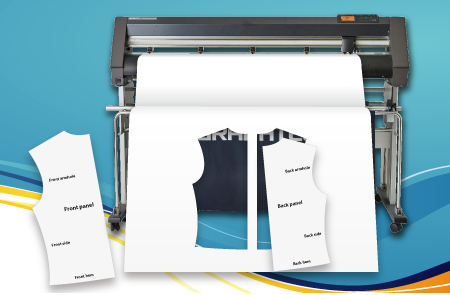

The Garment Pattern Cutter CE7000-130AP features reliable cutting/plotting quality, intuitive operation and is easy to use.

Other features include:

Dual tool configuration for cutting and plotting

It holds both a pen and a blade. The pen is for plotting and detailing graded patterns with seams, text, notches, grain direction, etc. The blade is to make the perforated cut of the pattern outline. The tool is automatically switched for cutting and plotting as needed, ensuring a high quality pattern and maximum productivity.

Enhanced speed when perforation cutting

Perforation cutting is performed by controlling the cutting force instead of blade up/down movements, dramatically increasing throughput. The force is controlled by the design software using a new command.

Improved media feeding stability

It is equipped with five push rollers as standard accessories. The new design of the XY mechanism increases rigidity of the main unit and improves media transportability. Pressure of the three middle push rollers can be adjusted in three levels (strong, medium or weak), and helps to prevent media lifting.

Blade/pen wear level alarm function

The function allows users to measure cutting distance of consumables such as blades and pens, and set conditions for tool replacement.

The design of the media feed system ensures that loaded media is acclimated to the ambient temperature and humidity before plotting or cutting. The user-selectable media pre-feed function sets two outer tracks, enhancing media handling. Together, these two media feed elements ensure reliable cutting and plotting quality within the desired operating environment.
