From large format work to detailed cuts and creases, there’s a solution for every stage of production with Intamarket’s new range of AOL digital cutting equipment.

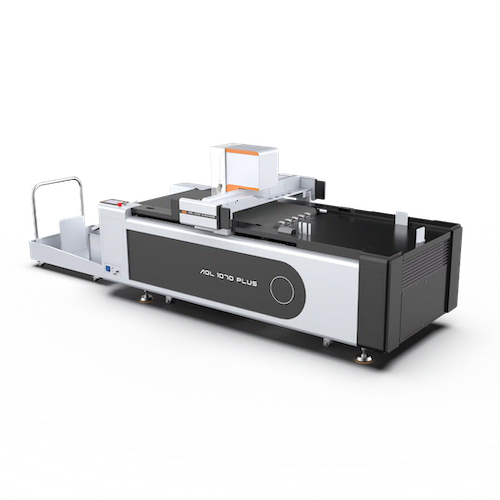

1070 Plus cutting plotter
A compact digital flatbed cutter for precise cutting and creasing across print, labels and packaging. The AOL 1070 Plus provides a digital cutting solution for businesses producing signage, packaging and printed graphics.
With a maximum cutting length of 1000 mm and width of 700mm, the 1070 Plus supports materials including PVC board, PP board, white card, cardboard, paper, PVC, film and stickers. It offers cutting speeds of up to 1200 mm/s and a maximum cutting thickness of 18mm, depending on the material and its density.
1625S cutting plotter
A large format digital cutter built to handle a wide range of materials and applications with accurate, efficient finishing. With a 1600 × 2500 mm working area and cutting speeds of up to 1200 mm/s, the 1625 S accommodates larger cutting jobs. The machine has a specified cutting thickness of up to 50 mm, with customisation available.
The multifunctional head supports optional tools including an oscillating knife, circular knife, V-cut tool and CCD camera. Supported materials include carbon fibre, fibreglass, rubber, plastic, insulation materials, honeycomb cardboard and film.
1612 Plus cutting plotter
With a 1600 × 1200 mm working area, cutting speeds of up to 1200 mm/s and support for materials up to 20 mm thick, the 1612 Plus accommodates a range of cutting requirements. Cutting speed and maximum thickness depend on the material and its density.
A selection of optional tools allows the machine to be configured for cutting, creasing and marking. A 5.5 kW vacuum pump, tracking adsorption and eight vacuum partitions help hold materials in position, while repeat accuracy of ≤0.1 mm supports consistent results.
|
